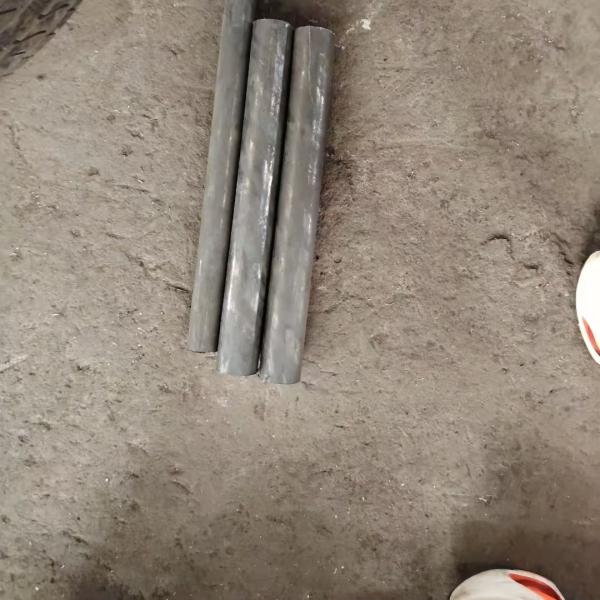

Precision-Machined Monel400 Round Steel with Excellent Strength
Temperature Resistance
Monel 400 round steel, a premium nickel-copper alloy product,
stands out for its precision machining capabilities, exceptional
mechanical strength, and reliable performance across extreme
temperature ranges. These attributes make it a preferred material
for industries requiring components that balance dimensional
accuracy with resistance to harsh operating conditions. Below is a
detailed breakdown of its chemical composition, mechanical
properties, standards, equivalent grades, applications, and related
Monel 400 products.
1. Chemical Composition
The superior performance of Monel 400 round steel is rooted in its
carefully calibrated chemical composition, where nickel (the core
corrosion-resistant element) and copper (for ductility and
strength) form the alloy’s foundation. Trace elements are strictly
controlled to optimize machining, strength, and stability. The
typical composition adheres to global industrial standards, as
shown below:
| Element | Content Range (%) |
|---|
| Nickel (Ni) | 63.0 – 70.0 |
| Copper (Cu) | 28.0 – 34.0 |
| Iron (Fe) | ≤ 2.5 |
| Manganese (Mn) | ≤ 2.0 |
| Carbon (C) | ≤ 0.3 |
| Silicon (Si) | ≤ 0.5 |
| Sulfur (S) | ≤ 0.024 |
2. Mechanical Properties
Monel 400 round steel delivers outstanding mechanical performance,
with strength and ductility tailored to withstand both low and high
temperatures (ranging from -200°C to 480°C). Its properties are
particularly optimized for precision-machined components, where
dimensional stability and load-bearing capacity are critical. Below
are typical values (annealed condition, unless noted otherwise):
| Property | Unit | Typical Value | Relevant Standard |
|---|
| Tensile Strength | MPa | ≥ 550 | ASTM B164 |
| Yield Strength (0.2% offset) | MPa | ≥ 240 | ASTM B164 |
| Elongation (in 50mm) | % | ≥ 35 | ASTM B164 |
| Hardness (Brinell) | HB | ≤ 150 | ASTM E10 |
| Modulus of Elasticity | GPa | 179 | - |
| Density | g/cm³ | 8.80 | - |
Cold-Worked Variation: For applications demanding higher strength
(e.g., high-pressure fittings), cold-worked Monel 400 round steel
is available. This variant offers tensile strength of 700–800 MPa
and yield strength of 450–550 MPa, with slightly reduced elongation
(15–25%).
3. Standards for Monel 400 Round Steel
To ensure consistency, precision, and reliability, Monel 400 round
steel is manufactured and inspected in compliance with globally
recognized standards. These standards govern chemical composition,
mechanical properties, dimensional tolerances, and quality control:
| Standard Organization | Standard Number |
|---|
| ASTM (USA) | ASTM B164 |
| ASME (USA) | ASME SB-164 |
| ISO (International) | ISO 6208 |
| DIN (Germany) | DIN 17750 |
| JIS (Japan) | JIS H4551 |
These standards ensure that Monel 400 round steel meets the
precision needs of industries like aerospace, oil and gas, and
chemical processing.
4. Equivalent Grades
Monel 400 is known by different designations across regional
standard systems. This helps in global procurement and ensures
compatibility with local manufacturing practices. Below are its key
equivalent grades:
| Standard System | Equivalent Grade | Region/Country |
|---|
| UNS (Global) | N04400 | International (widely used for material identification). |
| ASTM/ASME | Monel 400 | USA, Canada, and global markets. |
| ISO | NiCu30Fe | Europe, Asia, and other ISO-adopting regions. |
| DIN | 2.4360 | Germany, Austria, and European Union. |
| BS (UK) | NA12 | United Kingdom and Commonwealth nations. |
| JIS (Japan) | NW4400 | Japan, South Korea, and Southeast Asia. |
5. Applications of Precision-Machined Monel 400 Round Steel
Leveraging its precision machinability, strength, and temperature
resistance, Monel 400 round steel is used to manufacture critical
components across diverse industries. Key applications include:
Oil & Gas Industry
- Downhole components: Precision-machined valve stems, drill collars,
and wellhead fittings—resist corrosion from sour gas (H₂S) and high
temperatures (up to 480°C).
- Offshore equipment: Bolts, nuts, and flange connectors for offshore
platforms—withstand seawater corrosion and wave-induced stress.
Chemical & Pharmaceutical Industry
- Process equipment: Agitator shafts, reactor internals, and heat
exchanger tubes—machined to tight tolerances for leak-proof
operation with acids (e.g., HCl) and solvents.
- Sanitary components: Precision-machined valves and pumps for
pharmaceutical manufacturing—non-toxic, easy to clean, and
resistant to sterilization cycles.
Aerospace & Defense
- Engine parts: Fuel system fittings and hydraulic
components—maintain strength at cryogenic temperatures (-200°C, for
LNG systems) and high temperatures (e.g., engine bays).
- Marine Defense: Submarine propeller shafts and hull
fasteners—resist seawater corrosion and maintain dimensional
stability under pressure.
Power Generation
- Nuclear & Thermal Plants: Turbine blades and steam valve
stems—withstand high temperatures and corrosive coolants (e.g.,
demineralized water).
6. Other Monel 400 Products
Beyond round steel, Monel 400 is available in a range of product
forms to support end-to-end manufacturing needs. These products
share the alloy’s core properties (corrosion resistance, strength,
temperature stability) and are often used alongside round steel in
integrated systems:
| Product Form | Key Characteristics & Applications |
|---|
| Monel 400 Sheets/Plates | Thin to thick gauges (0.5mm–100mm); used for tank linings, heat
exchanger shells, and marine hull plates. |
| Monel 400 Pipes/Tubes | Seamless and welded options; ideal for chemical transport lines,
seawater cooling systems, and oil pipelines. |
| Monel 400 Wire | Fine to coarse diameters; used for welding electrodes, springs, and
precision electrical components. |
| Monel 400 Forgings | Custom-machined forgings (e.g., valve bodies, pump casings); offer
enhanced strength for high-pressure applications. |
| Monel 400 Fasteners | Bolts, nuts, washers, and studs; precision-threaded for secure
connections in corrosive or high-temperature environments. |
These products complement Monel 400 round steel, enabling the
creation of fully integrated, high-performance systems across
industries.
