| Brand Name : | TISCO |
| Model Number : | 200Series 300 Series 400 Series C276 904L,Monel 400 |
| Certification : | ISO |
| Price : | 2400 - 3500 USD/Ton |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 20Ton per week |
| Delivery Time : | 5 - 12 days based on the quantity |
| MOQ : | 200 kgs |

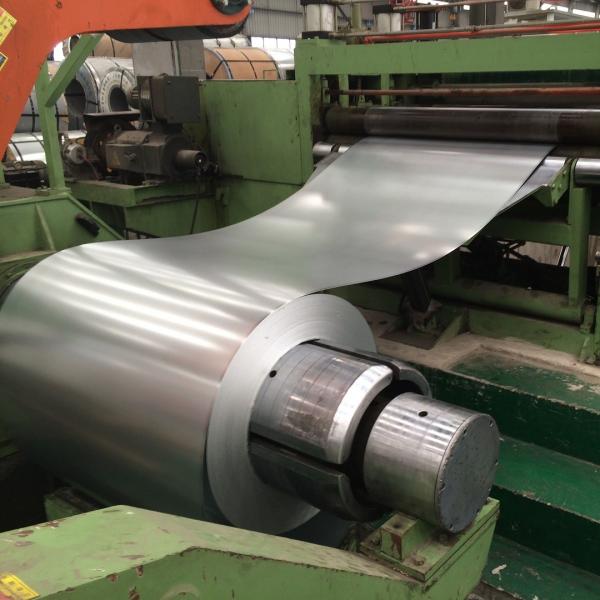

EN 2.4360 / Monel 400 Nickel Alloy Strip Coil Stainless Steel Strips Alloy 400 Thickness 0.1 - 3.0mm
| Material | Nickel Alloy 800H,825,600,625,690,718 Hastelloy Alloy C276,C22 ,C2000, B2, B3, G30,Monel 400 K500 |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc |
| Technique | Hot rolled / Cold rolled |
| Thickness | 0.1mm-3.0mm or as required |
| Width | 5 - 1000mm as required |
| Type | Precisiion Strip |
| Surface Treatment | Bright annealiing , Cold Rolled 2B |
| Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing |
| MOQ | 1000KG |
| Delivery time | 10-15 days |
| Export Packing | Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Equivalent Grades of 400 Monel Strip Coil
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
ASTM B127 Alloy 400 Plate Imperial Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |




|
